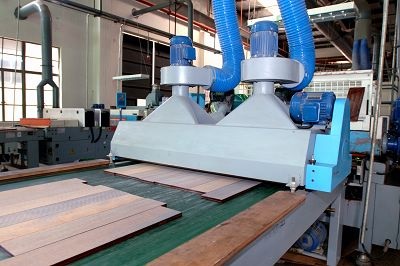

Wood processing conveyor belts are widely used in artificial board production line and woodworking mechanical sanding machine.
Product features: strong stretching resistance, antifriction, high flatness.
Type | Thickness (mm) |
Ply | Effective pull at 1% elongation (N/mm) |
Min diameter (mm) |
Temperature range (℃) |
|
20P25-14A | 2.0 | 2 | 8 | 30 | -15/80 | 20P25-14A 2 Green Smooth 2.0mm 0.5mm 2.4Kg/㎡ 8N/mm 30mm -15/80℃ https://www.boshunbelting.com/public/uploads/20190216/b7d23a7c206af7e7da3a43449ffbf1c4.jpg #00b050 |
20P25-34/0A | 2.0 | 2 | 8 | 30 | -15/80 | 20P25-34/0A 2 Black Matt 2.0mm 0.5mm 2.4Kg/㎡ 8N/mm 30mm -15/80℃ https://www.boshunbelting.com #000000 |
20P25-74/0A | 2.0 | 2 | 8 | 40 | -15/80 | 20P25-74/0A 2 Petrol Matt 2.0mm 0.5mm 2.4Kg/㎡ 8N/mm 40mm -15/80℃ https://www.boshunbelting.com #215867 |
30P22-11 | 3.0 | 2 | 12 | 50 | -15/80 | 30P22-11 2 Green Smooth 3.0mm 0.7/0.8mm 3.6Kg/㎡ 12N/mm 50mm -15/80℃ https://www.boshunbelting.com/public/uploads/20190321/a6fa713dfb8a49babe83185987c6722d.jpg #00b050 Wood, Food |
30P25-15A | 3.0 | 2 | 8 | 50 | -15/80 | 30P25-15A 2 Green Smooth 3.0mm 1.2mm 3.6Kg/㎡ 8N/mm 50mm -15/80℃ https://www.boshunbelting.com #00b050 |
30P25-75A | 3.0 | 2 | 8 | 60 | -15/80 | 30P25-75A 2 Petrol Smooth 3.0mm 1.0mm 3.6Kg/㎡ 8N/mm 60mm -15/80℃ https://www.boshunbelting.com #215867 |
40P32-14A | 4.0 | 3 | 15 | 80 | -15/80 | 40P32-14A 3 Green Smooth 4.0mm 1.0mm 4.8Kg/㎡ 15N/mm 80mm -15/80℃ https://www.boshunbelting.com #00b050 |
50P22-16/3A | 5.0 | 2 | 10 | 80 | -20/70 | 50P22-16/3A 2 Green Rough top 5.0mm 3.5mm 4.7Kg/㎡ 10N/mm 80mm -20/70℃ https://www.boshunbelting.com/public/uploads/20190316/7869d4601b5b0f6f8941e785a20e1848.jpg #00b050 |
50P22-16/9A | 5.0 | 2 | 10 | 60 | -20/60 | 50P22-16/9A 2 Green Wavy super grip 5.0mm 3.0mm 4.2Kg/㎡ 10N/mm 60mm -20/60℃ https://www.boshunbelting.com #00b050 |
60P39-76 | 6.0 | 3 | 40 | 250 | -15/80 | 60P39-76 3 Petrol Smooth 6.0mm 2.0mm 7.2Kg/㎡ 40N/mm 250mm -15/80℃ https://www.boshunbelting.com #215867 |
90P32-36/13 | 9.0 | 3 | 13 | 120 | -15/80 | 90P32-36/13 3 Black Square 9.0mm 6.0mm 8.0Kg/㎡ 13N/mm 120mm -15/80℃ https://www.boshunbelting.com/public/uploads/20181218/c57184ed99593117e8b2d4a4ffac4cd5.jpg #000000 Wood |
15U22-14A | 1.5 | 2 | 8 | 20 | -20/80 | 15U22-14A 2 Green Smooth 1.5mm 0.5mm 1.8Kg/㎡ 8N/mm 20mm -20/80℃ https://www.boshunbelting.com #00b050 |
15U22-84/0A | 1.5 | 2 | 12 | 20 | -20/80 | 15U22-84/0A 2 Blue Matt 1.5mm 0.5mm 1.8Kg/㎡ 12N/mm 20mm -20/80℃ https://www.boshunbelting.com #0070c0 |
90P32-46/43 | 9.0 | 3 | 18 | 148 | -15/80 | 90P32-46/43 3 Grey Grinding square 9.0mm 6.0mm 8.1Kg/㎡ 18N/mm 148mm -15/80℃ https://www.boshunbelting.com/public/uploads/20181217/943d2fa650d4d28cd2cb33f93cd97c9d.jpg #7f7f7f |
